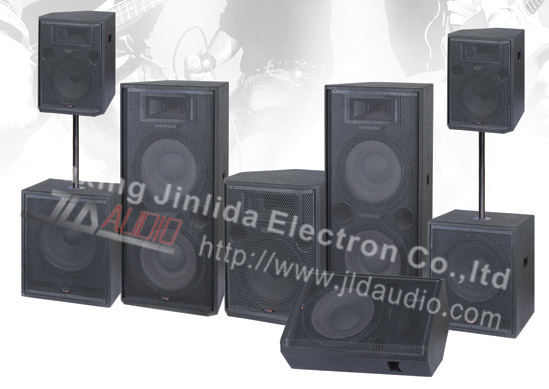

JBa12 |
JBa15 |
| System type: |
2-Way 12" Full Range |
2-Way 15" Full Range |
| Woofer: |
12"(300mm);2"(50.8mm)voice coil;50 OZ;8ohm |
15"(385mm);3"(76.5mm)voice coil;60 OZ;8ohm |
| Compression drive: |
1.74"(44.4mm)titanium driver;24.2 OZ;8ohm |
1.74"(44.4mm)titanium driver;24.2 OZ;8ohm |
| Frequency response: |
55-20KHz |
48-20KHz |
| Rated power: |
300W |
400W |
| Max power: |
600W |
800W |
| Outside the box materials: |
Paint |
Paint |
| Crossover passive: |
3.0 KHz |
3.0 KHz |
| Sensitivity(w/m/2.83v) |
97dB±3dB |
98dB±3dB |
| Connectors |
2x neutik:NL4 |
2x neutik:NL4 |
| Dimensions(WxDxH) |
(425+195)*350*555 |
(460+220)*360*665 |
