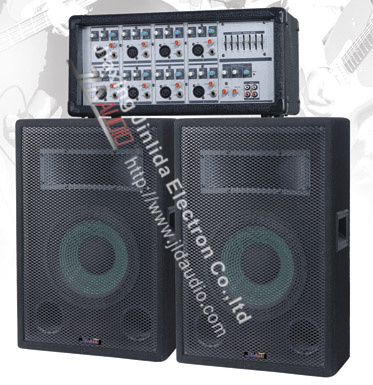

| Jka1112 series: |
| 12”-2Way Stage speaker/Floor monitor |
| 12”Heavy-duty woofer and compression tweeter driver |
| 8Ohm impedance |
| 80W RMS/150W Music/300W Peak |
| Woofer: |
10"(250mm);1.4"(35.5mm)voice coil;40 OZ;8ohm |
| Compression drive: |
1"(25.4mm)Polyester-film;8 OZ;8ohm |
| Frequency response: |
55-20KHz |
| Crossover passive: |
3.0 KHz |
| Sensitivity(w/m/2.83v) |
96dB±3dB |
| Connectors |
2x neutik:NL4 |
| Dimensions(WxDxH) |
（385+175）*307*565 |
