Parameters

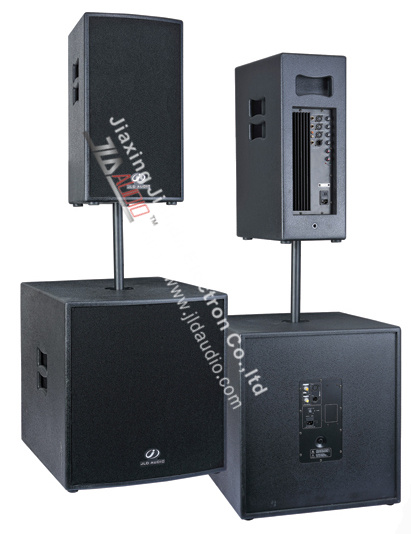

  • Model No.:JRa12A
  • 12inch-2way powered speaker
  • Frequency: 52Hz-20KHz
  • Normal Impedance: 8Ohm
  • SPL 97dB/W/M
  • RMS/Musical/Max.Power: 150W/300W/600W
  • Durable scratch-proof paint protection for 15mm MDF wooden cabinet
  • Intergrated handles for easy moving
  • Powder coated 1.3mm steel grill with acoustically transparent foam
  • 1.35" Titanium tweeter driver
  • 12inch long-throw composite woofer
  • Multi-function amplifier
  • Size (W*D*H): 37.4×41×64cm
  • Model No.:JRa18SB
  • 18" powered subwoofer
  • Frequency: 35Hz-250Hz
  • Normal Impedance: 4Ohm
  • SPL 99dB/W/M
  • RMS/Musical/Max.Power: 300W/600W/1200W
  • Durable scratch-proof paint protection for 18mm MDF wooden cabinet
  • Intergrated handles for easy moving
  • Powder coated 1.3mm steel grill with acoustically transparent foam
  • 18inch long-throw composite woofer
  • Powered amplifier
  • Size (W*D*H): 37.4×41×64cm
Class AB Amplifier
Subwoofer:
Subwoofer Freq. Resp.: 40HZ ～ 150HZ +/-3dB
Subwoofer and Stereo Level Control
Phase and Ground Switch
Line Input XLR and Line Output XLR
POWER CAPACITY:200W
Satellite:
FREQ. RESP.:45HZ ～20KHZ +/-3B
MIC INPUT (XLR x 2 or 1/4" Jack x 2 )
LINE INPUT (XLR or RCA)
2 Band EQ. (80HZ、12KHZ )
LINE OUTPUT (XLR or 1/4" Jack)
POWER CAPACITY:150W
Power Voltage:AC115V&AC230V
Power Connector:Standard IEC
